FieldCraft

An open-source, clean-room CAE application in pure Rust: from a parametric SolidCraft part to a verified finite element analysis, with tetrahedral and hexahedral meshing, its own implicit, explicit, thermal and lattice Boltzmann solvers, and decks for Abaqus, Nastran and LS-DYNA. The desktop app, the command line and AI agents (over MCP) drive the same commands.

Status: early but working end to end — open a part, mesh it, define the analysis, solve, see the results — with a nonlinear implicit solver (large deformation, plasticity, rubber) now in place. Hex meshing is the centre of gravity. Next: buckling and arc-length, contact, then the wider material and multiphysics library. See ROADMAP.md. Want to help? Pick an issue labelled good first issue or help wanted and read CONTRIBUTING.md.

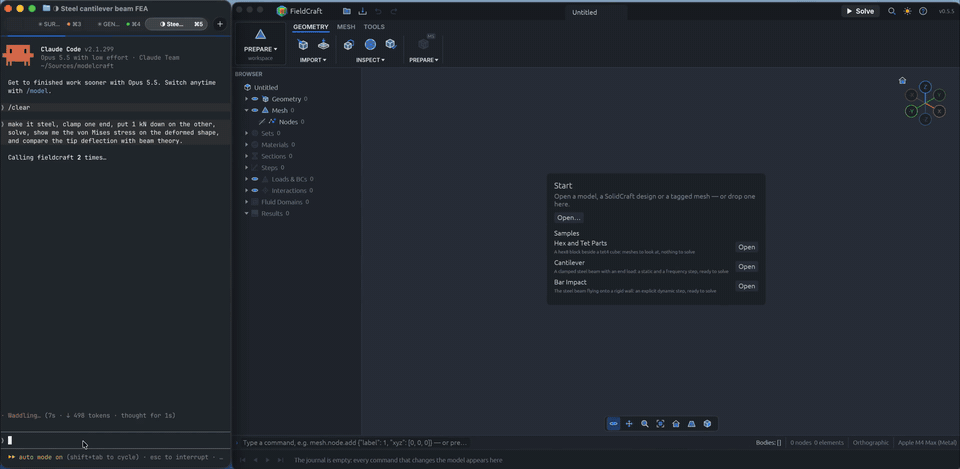

Claude driving FieldCraft through its MCP server: one prompt, and it opens the part, meshes it, defines and solves the analysis, then checks the tip deflection against beam theory. Real session, waits shortened. Full video.

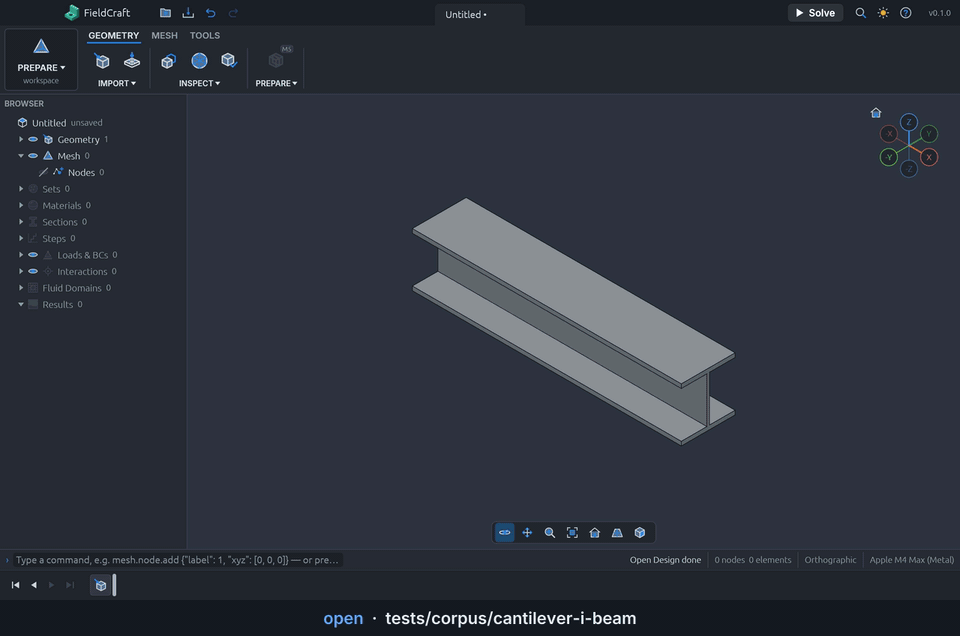

An AI agent drives FieldCraft over MCP, each stage captioned with the tool it calls: it opens an I-beam, hex meshes it, defines the material, the clamp and a 1000 N tip load, solves, and shows the von Mises stress and the deformed shape (tip deflection 0.176 mm; beam theory with shear 0.177 mm). MP4 · regenerated by tools/demo-video.

Download

• macOS: open the .dmg and drag FieldCraft into Applications (Apple silicon and Intel).
• Windows: unzip and run fieldcraft.exe.
• Linux: the .AppImage (allow it to run as a program), or the .tar.gz.
• Browser: try it at tangency-labs.github.io/fieldcraft, no install.
• Command line: fieldcraft-cli ships in every package; AI agents connect to it over MCP (docs/mcp.md).

Every release lists its checksums in SHA256SUMS.txt. Building from source is in CONTRIBUTING.md.

Hex meshing a part that does not sweep

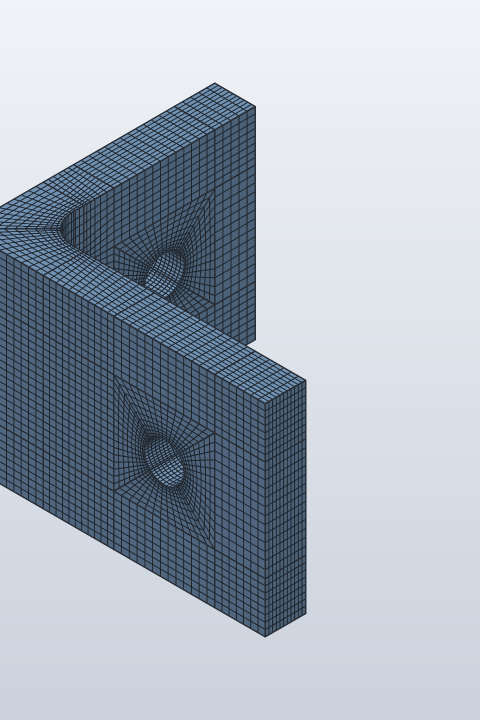

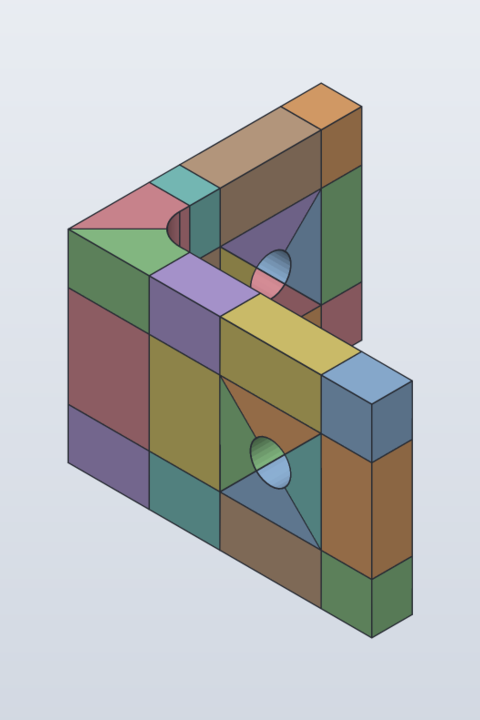

A filleted L-bracket with a hole through each leg cannot be swept in one piece. Split into 30 cells in SolidCraft, FieldCraft meshes it all-hex as one conforming mesh — O-grids round the holes, graded through the fillet — and its hex20 tip deflection matches a fine tet10 solution to 0.1 %. The same part also meshes all-hex automatically with the octree mesher (mesh.hex.octree).

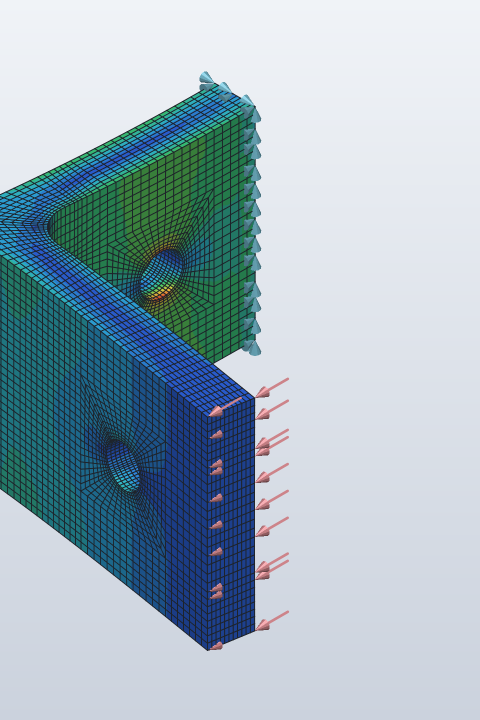

Cells	Conforming hex mesh	Von Mises (clamp and load drawn)

What it does today

• Geometry in: SolidCraft designs (.solidcraft) with persistent face, edge and body names, and face-tagged 3MF meshes; surface checks (weld, manifold, orientation, self-intersection).
• Meshing: constrained Delaunay tetrahedra (tet4, tet10) with exact predicates and a certified validity gate; Delaunay refinement, smoothing and sliver removal; structured hex by sweeping, revolving and mapping (hex8, hex20), and conforming multi-block hex across a part split into cells (mesh.hex.blocks); unstructured octree all-hex for any part (mesh.hex.octree); 2D quad and tri meshes; quality metrics per element and set.
• Elements: solids (tet4, tet10, wedge6, hex8 with incompatible modes, hex20 full and reduced, hybrid u–p for near-incompressible materials), plane stress, plane strain and axisymmetric, trusses, Timoshenko beams, MITC3/MITC4 shells, springs, dashpots and point masses.
• Model: sets bound to geometry names, so they survive remeshing; isotropic and orthotropic elasticity, J2 plasticity (isotropic and kinematic hardening, Johnson–Cook), Johnson–Cook damage, neo-Hookean, Mooney–Rivlin and Yeoh hyperelasticity, thermal properties; fixed, displacement, symmetry and temperature conditions; forces, moments, pressure, gravity, centrifugal and heat loads; reference points with kinematic and distributing couplings; undo, redo and a text-diffable .fieldcraft file.
• Solvers: linear static and frequency (supernodal Cholesky, block Lanczos); nonlinear static by Newton–Raphson with automatic increments — large deformation (total Lagrangian) on every solid element, follower pressure, finite- and small-strain plasticity sharing one return map with the explicit solver, rubber and thermal strain, with measured quadratic convergence; steady and transient heat transfer and coupled thermal stress; explicit dynamics with plasticity, damage, erosion and rigid walls; D3Q19 lattice Boltzmann flow with forces on the part's faces. Results never depend on the thread count.
• Decks: Abaqus, Nastran and LS-DYNA writers, each refusing by name what it cannot express.
• Results: contours of stress, strain and displacement with a legend, deformed shapes, mode shapes, explicit and nonlinear frames, probes and reaction sums; supports, loads, reference points and couplings drawn in the viewport.
• Verification: every capability is checked against closed forms and published benchmarks (NAFEMS, MacNeal–Harder, Scordelis–Lo, the elastica, Hill's plastic cylinder, Rivlin's tube) in tests/oracle, with results frozen so they cannot drift: 170 of 176 quantities pass in 50 cases, the 6 others documented known failures (docs/oracle.md).
• Driving it: a desktop app in the Craft family's layout, a CLI, a JSON control channel and an MCP server; every capability is a command (docs/features.md).

Examples

Ready-to-solve samples: open one from File ▸ Samples (or the start screen), or start the app with fieldcraft --sample NAME, and press Solve. Each opens and solves within half a minute and is checked against a closed form or a reference solution (docs/examples.md).

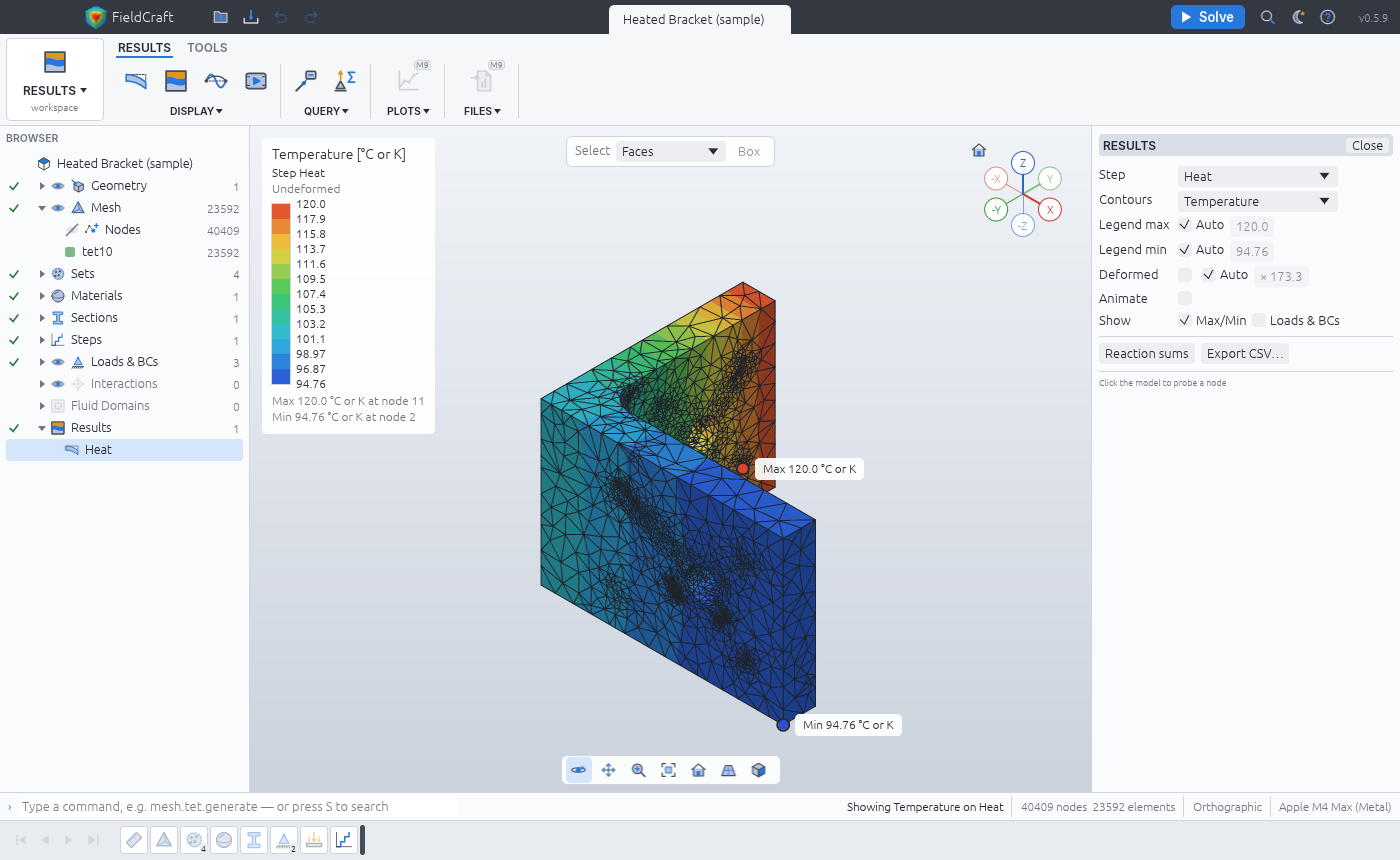

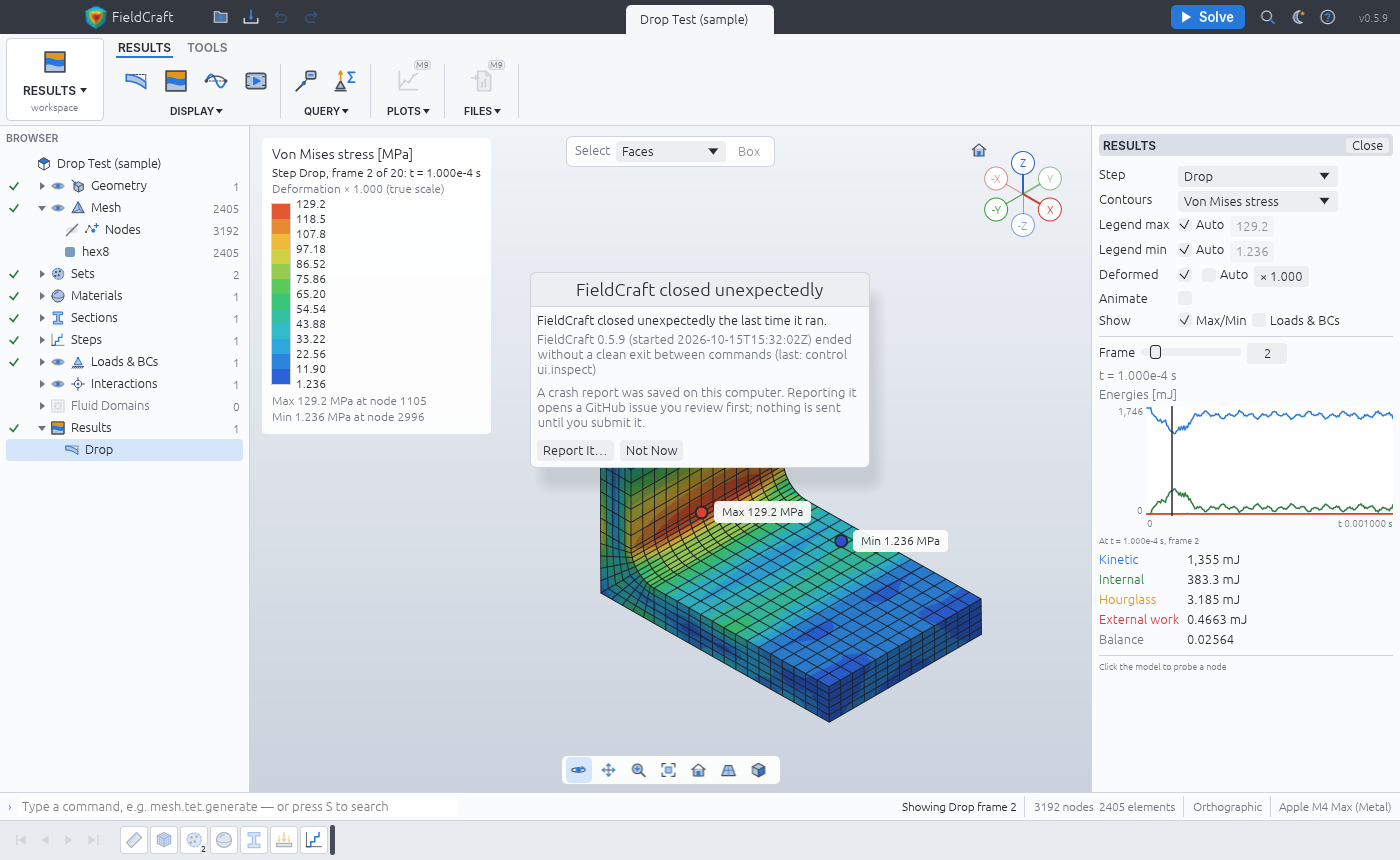

Drop test (drop-test): an aluminium bracket dropped 2 m onto a tilted floor; explicit dynamics, the strike's stress waves	Rubber seal (rubber-seal): a Mooney–Rivlin gasket ring squeezed 25 %; nonlinear static, large strain	Heated bracket (heated-bracket): a clamped steel bracket heated at one end; steady heat and thermal stress

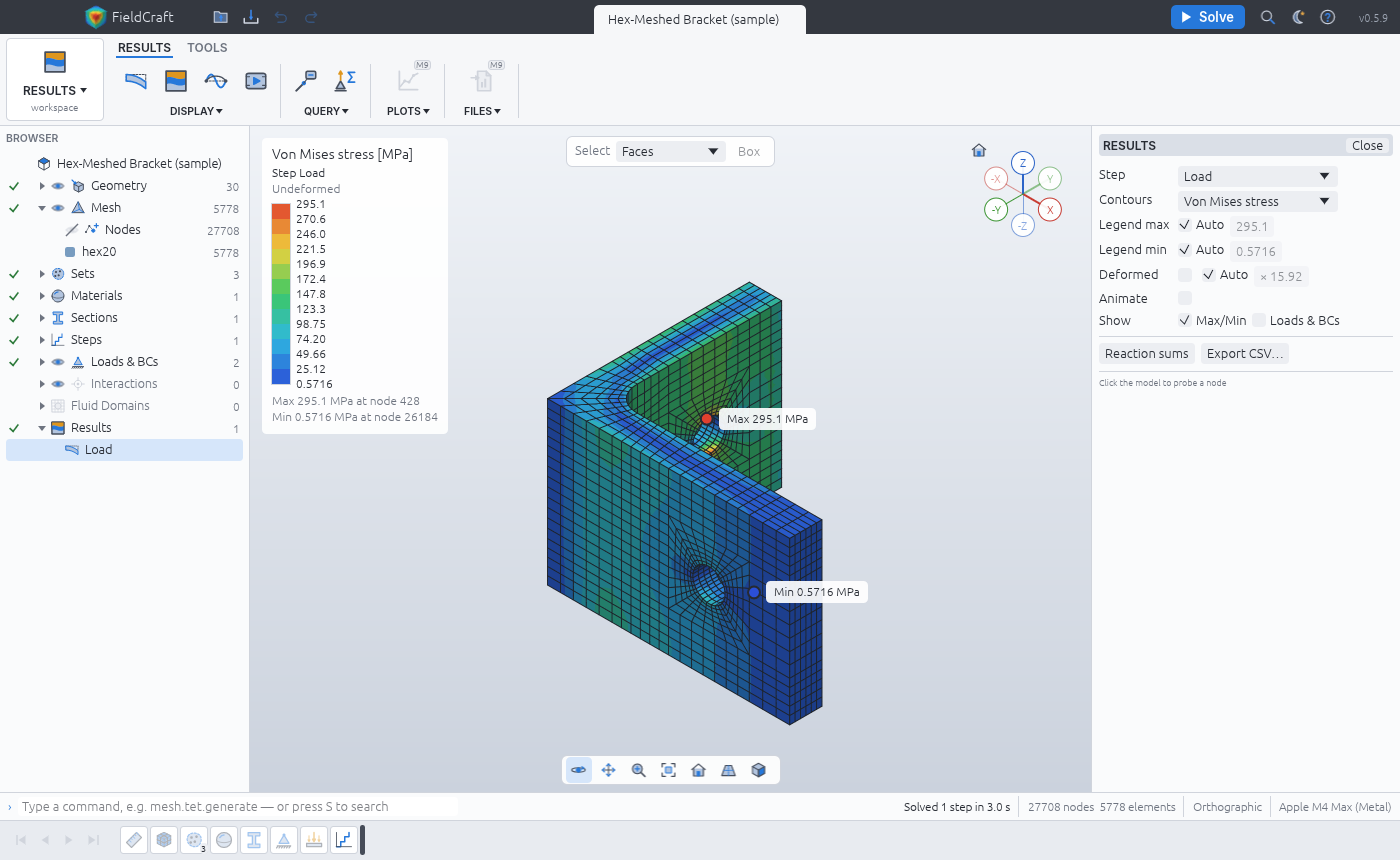

Hex-meshed bracket (bracket-hex): the bracket split into 30 cells, meshed all-hex (hex20), von Mises	Bicycle crank arm (crank-arm): an aluminium crank meshed structured all-hex (hex20) from a partitioned half and its mirror image, a rider's weight on the pedal; root bending within 0.3 % of M/Z	No picture yet: the viewport does not draw flow results (M12). Flow past a bracket (flow-past): air past an L-bracket on the floor; lattice Boltzmann flow, the drag and the force on each face
